Understanding the Forces: How Large Diameter Wind Power Flanges Withstand Operational Loads

2024-03-21

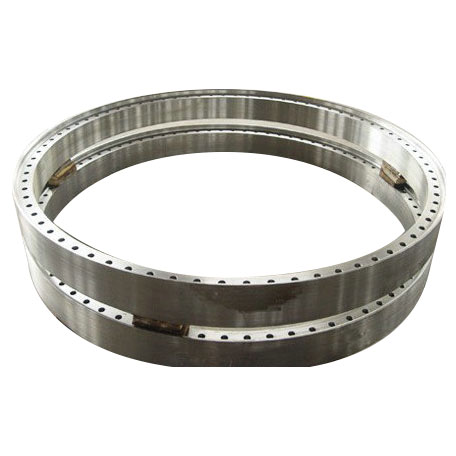

In the world of renewable energy, wind power stands as a beacon of sustainable electricity generation. At the core of wind turbine systems lies a critical component known as the wind power flange. These flanges serve as essential connectors, ensuring the structural integrity and stability of wind turbine towers. However, to fulfill this crucial role, large diameter wind power flanges must withstand a variety of loads and forces encountered during operation. Let's delve into the types of loads and forces experienced by these flanges and explore how they are meticulously designed to withstand them.

1. Wind Loads:

  Wind is the primary driving force behind wind turbine operation, and wind loads exert significant pressure on wind turbine components, including large diameter wind power flanges. These loads consist of both steady and dynamic components, with fluctuations in wind speed and direction causing varying magnitudes of force on the turbine tower. Wind loads are calculated based on factors such as wind speed, turbulence, and tower height, and large diameter wind power flanges are designed to withstand these forces without deformation or failure.

2. Gravity Loads:

  Wind turbine towers are subject to gravitational forces acting vertically downward, including the weight of the tower structure, nacelle, rotor assembly, and other components. Large diameter wind power flanges must support these gravity loads while maintaining structural stability and integrity. Engineers carefully consider the weight distribution and loading conditions to design flanges capable of bearing the weight of the entire turbine system and resisting gravitational forces without deformation or displacement.

3. Rotor Thrust Loads:

  As wind interacts with the turbine blades, it generates aerodynamic forces known as rotor thrust loads. These forces act horizontally along the axis of the turbine tower and are transmitted to the foundation through the tower structure and flanges. Large diameter wind power flanges are designed to withstand these thrust loads and transfer them efficiently to the tower foundation, ensuring stable and reliable operation of the wind turbine system.

4. Torsional Loads:

  Torsional loads result from torque generated by the rotating blades and rotor assembly of a wind turbine. These loads induce twisting or torsional deformation in the tower structure and flanges, particularly at the connection points. Large diameter wind power flanges are engineered to resist torsional loads and maintain their structural integrity under the rotational forces exerted by the turbine rotor. Proper design and reinforcement techniques ensure that flanges can withstand torsional stresses without compromising performance or safety.

5. Seismic Loads:

  In regions prone to seismic activity, wind turbine towers may experience seismic loads resulting from ground motion during earthquakes. Large diameter wind power flanges must be designed to withstand seismic forces and ensure the structural stability of the turbine tower under seismic loading conditions. Engineers employ seismic design principles and reinforcement techniques to enhance the resilience of flange connections and mitigate the risk of damage during seismic events.

6. Fatigue Loads:

  Wind turbine towers are subjected to cyclic loading conditions caused by fluctuating wind speeds, rotor rotation, and operational variations. These cyclic loads induce fatigue stresses in the tower structure and flanges over time, potentially leading to fatigue failure if not adequately addressed. Large diameter wind power flanges are designed with fatigue-resistant materials and geometries, and fatigue analysis is performed to ensure durability and longevity under repeated loading cycles.

To withstand the diverse array of loads and forces encountered during operation, large diameter wind power flanges undergo rigorous design and engineering processes. By considering factors such as wind loads, gravity loads, rotor thrust loads, torsional loads, seismic loads, and fatigue loads, engineers develop flanges that exhibit robustness, reliability, and resilience in wind turbine applications. Through meticulous design, careful analysis, and innovative solutions, large diameter wind power flanges play a pivotal role in harnessing the power of wind energy and advancing the transition to a sustainable future.
