Unveiling the Magic: The Science of Heat Shrinkable Tubes and Temperature Requirements

2024-01-22

Introduction:

In the realm of electrical insulation and cable protection, heat shrinkable tubes stand out as ingenious solutions that transform in response to heat, providing a snug and protective covering for wires and cables. Understanding how the heat shrinkable property works and the temperature required for shrinking is essential for ensuring optimal performance. In this blog post, we will delve into the science behind the heat shrinkable property of these tubes and the temperature conditions necessary for activation.

How Heat Shrinkable Tubes Work:

1. Polymeric Composition:

  - Heat shrinkable tubes are typically made of polymeric materials, such as polyolefins (e.g., polyethylene and polypropylene) or fluoropolymers (e.g., polytetrafluoroethylene or PTFE). These polymers undergo a process called cross-linking, forming a molecular structure that allows for the heat shrinkable property.

2. Cross-Linking and Memory Effect:

  - Cross-linking involves creating chemical bonds between polymer chains. This process imparts a memory effect to the material, allowing it to return to its original shape when heated. The memory effect is crucial for the tube to shrink uniformly around the cable or wire.

3. Initial Expanded State:

  - Heat shrinkable tubes are manufactured in an expanded state. In this state, they have a larger diameter, making them easy to slide over cables or wires. The expanded state is maintained by the cross-linking, providing stability until activated by heat.

4. Activation by Heat:

  - When exposed to heat, the heat shrinkable tubes start to shrink. This is a reversible process due to the material's memory effect. The heat causes the polymer chains to contract, returning the tube to its original, unexpanded diameter.

5. Conforming to Cable Contours:

  - As the tube shrinks, it conforms tightly to the contours of the cable or wire. The snug fit provides insulation, mechanical protection, and resistance against environmental factors.

Temperature Requirements for Shrinking:

1. Activation Temperature:

  - The activation temperature for heat shrinkable tubes varies based on the specific polymer composition. Generally, the activation temperature ranges from approximately 70°C to 120°C (158°F to 248°F). This temperature range ensures that the tubes remain stable during normal operating conditions but shrink when exposed to elevated temperatures.

2. Heat Source Options:

  - Heat can be applied using various sources, including heat guns, ovens, or specialized equipment. The choice of heat source depends on the application and the accessibility of the cables or wires.

3. Uniform Shrinkage:

  - Achieving uniform shrinkage is crucial for maintaining the effectiveness of the insulation. Applying heat evenly ensures that the heat shrinkable tube contracts uniformly around the cable, leaving no gaps or uneven coverage.

4. Controlled Process:

  - The activation temperature must be carefully controlled to prevent overheating, which can lead to damage or deformation of the heat shrinkable tube. Following manufacturer guidelines and specifications is essential for a controlled and successful shrinking process.

Applications and Considerations:

1. Electrical Insulation:

  - Heat shrinkable tubes are widely used for electrical insulation in various applications, including cable splicing, repairs, and connections.

2. Cable Identification:

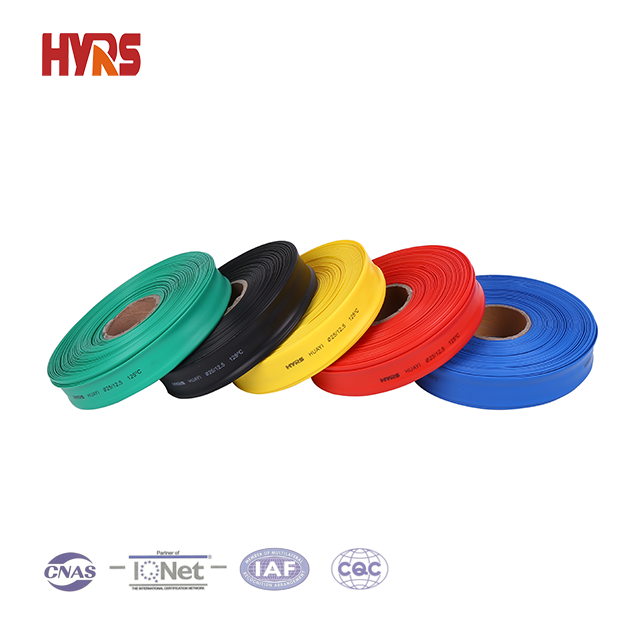

  - Different colors and sizes of heat shrinkable tubes allow for easy cable identification and organization in complex wiring systems.

3. Mechanical Protection:

  - The snug fit of the heat shrinkable tube provides mechanical protection against abrasion, chemicals, and environmental elements.

4. Waterproofing:

  - Heat shrinkable tubes with adhesive lining can offer waterproofing capabilities, protecting cables from moisture and enhancing their longevity.

Conclusion:

The heat shrinkable property of tubes is a fascinating application of material science, providing a dynamic and responsive solution for electrical insulation and cable protection. Understanding the activation temperature and the science behind the shrinking process empowers users to apply these tubes effectively in various electrical applications. As the tubes undergo their magical transformation, they contribute to the reliability, safety, and longevity of electrical systems.
