The Brief Introduction to Water Glass Investment Casting for Bracket Assembly

2023-10-18

Water glass investment casting, also known as the lost wax casting process, is a metal casting technique that is commonly used to produce complex and high-precision components. This process involves creating a wax pattern or model of the part, then coating the pattern with a ceramic material to form a mold. The wax is melted out of the mold, leaving behind a cavity that is filled with molten metal to create the final part.

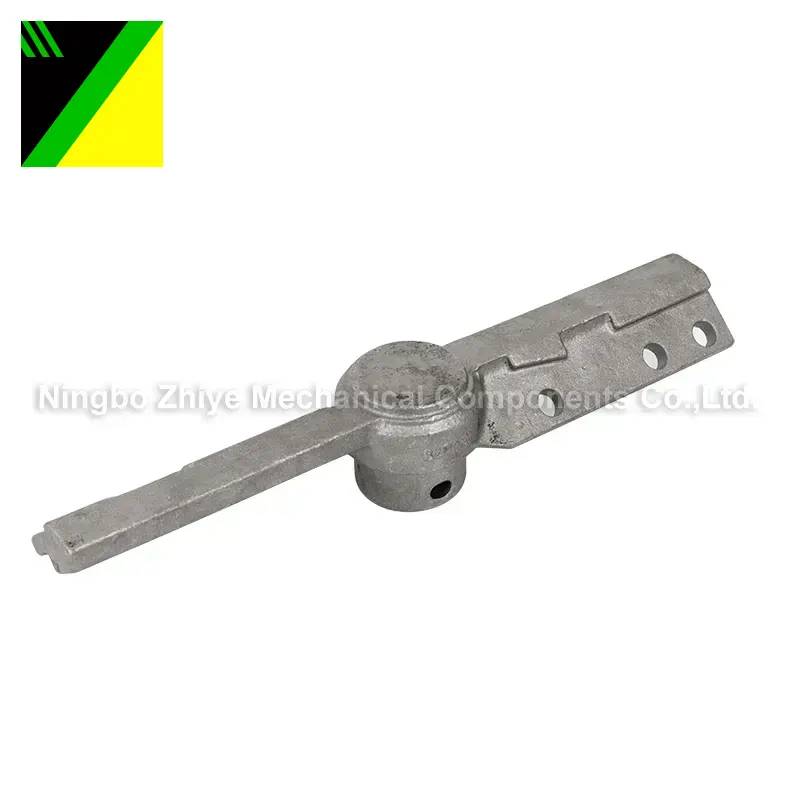

For a bracket assembly, the water glass investment casting process can be an excellent choice, as it can produce high-precision parts with intricate geometries and thin walls. Additionally, the process can be used to cast a variety of metals, including aluminum, stainless steel, and bronze.

To create a water glass investment casting for a bracket assembly, the first step is to create a wax pattern of the bracket using a CAD software or by hand carving. The wax pattern is then coated with a water-based ceramic slurry to create a ceramic shell mold around the pattern. The shell mold is then heated to remove the wax, leaving a hollow cavity in the mold.

Next, molten metal is poured into the mold, filling the cavity and creating the final part. After the metal has solidified and cooled, the ceramic shell is broken away, revealing the finished part. The part may then be machined or finished as necessary to achieve the desired dimensions and surface finish.

Overall, water glass investment casting is an excellent choice for producing high-precision and complex parts, such as those needed for a bracket assembly. With careful attention to detail and a skilled team, the process can yield high-quality parts that meet the exact specifications and requirements of the assembly.
