Laser Cleaning Machine

Laser Cleaning Machine

A laser cleaning machine, also known as a laser rust remover or laser surface cleaner, is a high-tech tool that utilizes laser technology to remove contaminants, coatings, rust, and other unwanted substances from surfaces. It offers a non-abrasive and environmentally friendly method of cleaning vari......

Send Inquiry

Product Description

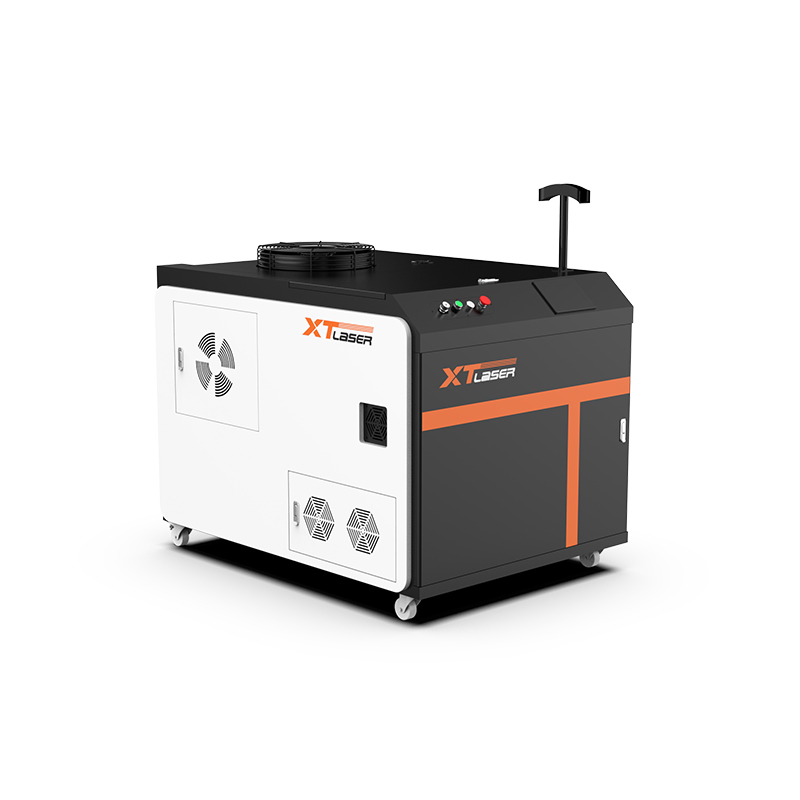

A laser cleaning machine, also known as a laser rust remover or laser surface cleaner, is a high-tech tool that utilizes laser technology to remove contaminants, coatings, rust, and other unwanted substances from surfaces. It offers a non-abrasive and environmentally friendly method of cleaning various materials, including metals, plastics, ceramics, stone, and more.

Here are the key components and working principles of a laser cleaning machine:

1. Laser Source: The laser source generates a powerful laser beam that is directed towards the surface to be cleaned. Different types of lasers, such as pulsed fiber lasers or pulsed Nd:YAG lasers, are used depending on the specific cleaning requirements.

2. Beam Delivery System: The laser beam is delivered from the laser source to the cleaning head through a beam delivery system. This system typically consists of mirrors and lenses that help guide and focus the laser beam onto the target surface.

3. Cleaning Head: The cleaning head is the component that focuses the laser beam onto the surface. It contains a focusing lens that concentrates the laser energy into a small spot to achieve precise cleaning.

4. Scanner or Galvanometer: The laser beam is often directed using a scanner or galvanometer system, which allows for precise control of the laser beam movement and enables scanning across the surface to be cleaned.

5. Control System: Laser cleaning machines are equipped with a control system that interprets user commands and controls the laser parameters, such as power, frequency, and scanning speed. The control system also ensures safety measures are in place during operation.

6. Exhaust System: Laser cleaning generates debris and particles as the contaminants are removed from the surface. An exhaust system is often incorporated into the machine to effectively capture and remove these by-products, ensuring a clean working environment.

The operation of a laser cleaning machine involves the following steps:

1. Surface Preparation: The surface to be cleaned is prepared by removing loose debris or coatings that may hinder the cleaning process. This can be done through manual cleaning or pre-treatment methods if necessary.

2. Laser Cleaning Parameters Setup: The operator sets up the laser cleaning machine by adjusting parameters such as laser power, pulse duration, repetition rate, and scanning speed based on the material and type of contaminants to be removed. Different materials and contaminants may require specific settings for optimal cleaning.

3. Laser Cleaning Process: The laser beam is directed onto the surface to be cleaned, and the operator guides the cleaning head across the targeted area. The laser energy interacts with the contaminants or unwanted substances, causing them to vaporize or ablate from the surface without damaging the underlying material.

4. Collection of Residue: As the contaminants are removed, the debris and residue are collected using the exhaust system or vacuum attachment integrated into the machine.

5. Inspection and Post-Cleaning Steps: After the cleaning process, the surface can be inspected to ensure the desired level of cleanliness has been achieved. Depending on the application, additional steps such as rinsing, drying, or post-treatment may be required.

Laser cleaning machines offer several advantages over traditional cleaning methods, including non-contact cleaning, precision, reduced use of chemicals or abrasive materials, minimal heat generation, and environmental friendliness. They are used in various industries such as manufacturing, automotive, aerospace, restoration, conservation, and more, where efficient and precise cleaning of surfaces is required.
